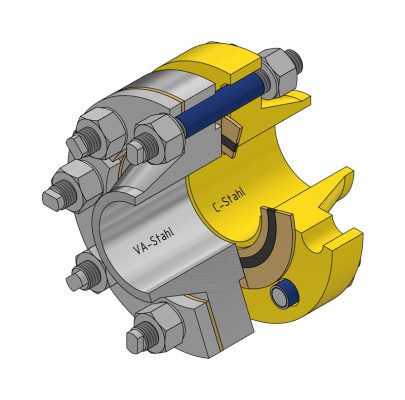

Carbon steel / stainless steel separation type SW3 B

Prevention of contact corrosion – safe electrical / galvanic separation of flange connections made of different materials (e.g. stainless steel / carbon steel).

Verifications: Connecting elements tested and designed in accordance with DIN 30690, certified with APZ 3.1 / 3.2 / 2.2 in accordance with DIN EN 10204.
No pressure equipment according to DRGL, individual components certified.

Insulating seal 3 mm
FKM seal integrated in the mica ring
Can be used up to 260°C
DIN / ASME flange connections - a wide range of media and temperature ranges
Insulating and pressure ring on one side - PO-insulated bolts
